Vertical Reciprocating Conveyor Lifter with Integrated Ultra-Low Scissor Platform for AGV Integration

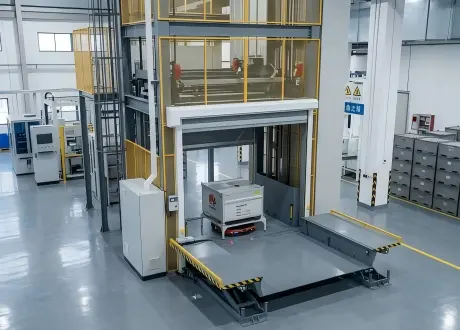

Our Automated Vertical Reciprocating Conveyor Lifter with Integrated Ultra-Low Scissor Platform is a cutting-edge vertical material handling solution specially engineered for modern automated smart factories and logistics hubs. Designed to establish an unbroken link between automated guided vehicles (AGVs) and multi-level storage floors, this lift system eliminates the need for deep floor pits. By pairing a high-capacity 5-ton chain reciprocating lifter with a custom-built, hydraulic ultra-low profile scissor lift, AGVs can seamlessly drive onto the platform at ground level, elevate to the car height, and transfer heavy palletized goods autonomously.

Specification

Product Type	Double-chain Reciprocating Vertical Conveyor (VRC)
Rated Load Capacity	5000 kg
Lifting Speed	30 m/min (Variable Frequency Control)
Travel Height	9,900 mm (9.9m)
Stops & Stations	2 Stops, 2 Stations
Cabin Inner Size	3,000 mm (W) × 2,200 mm (D) × 2,800 mm (H)
Overall Dimensions	4,300 mm (W) × 2,800 mm (D) × 12,800 mm (H)
Landing Doors	PVC Rolling Doors (1,900 mm W × 2,500 mm H)
HMI (Human-Machine Interface)	MCGS Touch Screens
Entry/Exit Layout	Z-Type Configuration
Main Drive Motor	22 kW – 30 kW / 380V / 50Hz
Note: The above parameters are for reference only, all products can be customized

Product Type	Hydraulic Ultra-Low Profile Scissor Lift Platform
Rated Load Capacity	2,500 kg (2.5 Tons)
Lifting Height / Travel	800 mm
Platform Dimensions	3,000 mm (W) × 2,500 mm (D)
Ultra-Low Clearance	Center cargo surface height is 10 mm above ground level
Drive & Structure	Hydraulic Scissor Mechanism
Leveling Assistance	Electric Push-Rod Leveling Device
Control Integration	Integrated into main VRC control cabinet, PLC-linked with AGV system
Note: The above parameters are for reference only, all products can be customized

Features

1. Seamless AGV Docking & Pitless Design

10mm Ultra-Low Clearance: Platform sits just 10 mm above the ground, enabling AGVs to drive straight on without ramps or ground excavation.
Pitless Surface Mount: Completely eliminates civil engineering costs and allows easy installation or future relocation.
Fully Automated Signal Interlock: Direct PLC communication with AGV systems (compatible with HIKROBOT) for autonomous cargo transfers.

2. High-Capacity & Rapid Vertical Transit

Heavy Payload: Handles up to 5,000 kg (5 Tons) on the main lift and 2,500 kg (2.5 Tons) on the scissor platform.
High Speed (30 m/min): Powered by a 22–30 kW motor with VFD frequency control for rapid multi-floor logistics.
Double-Strand Chain Drive: Heavy-duty 20A-2 double chains with T90/TK5A guide rails ensure stable, low-vibration operation.

3. Smart Siemens Control & HMI

Siemens PLC & VFD System: Delivers high positioning accuracy, soft start/stop, and minimal mechanical wear.
Multi-Floor Interlocked Touchscreen: MCGS touchscreens on each level feature single-station operation locks to prevent command conflicts.
Electric Push-Rod Leveling: Ensures precise platform alignment during AGV loading.

4. Comprehensive Industrial Safety

Mechanical Anti-Drop Safety Gear: Instantly locks onto guide rails if chain tension drops.
Omron Light Curtains & Signals: Entrance light curtains with 3-color LED towers trigger instant stops upon unauthorized entry.
Human Motion Detection: Internal sensors halt operation if people enter the lift cabin.

5. Rapid PVC Doors & Outer Enclosure

Fast PVC Roll-Up Doors: 3 sets of dynamic doors (1900×2500 mm) optimize cycle times while isolating dust and noise.
Full Outer Mesh Cage: Diamond mesh fencing surrounds the 12.8m frame, paired with cabin guardrails and a caged ladder.
