AGV Compatible|High-Speed Vertical Reciprocating Conveyor for Lithium Battery Industry

Our High-Speed Vertical Reciprocating Conveyor is an elite, heavy-duty industrial lifting solution engineered specifically for multi-tier automated warehouses, with a dedicated focus on the lithium-ion battery manufacturing sector. Featuring a C-type configuration for single-side indoor entry and exit, this system spans a total lifting height of 16,000mm across 5 distinct levels.
The cabin comes equipped with an integrated 304 stainless steel double-chain conveyor that docks perfectly with outer triple-stage plate chain conveyors (speed adjustable at 20m/min), creating a highly efficient, fully hands-free material handling loop. Catering to cleanrooms and strict processing environments, the system completely isolates forbidden elements (Lead, Zinc, Copper) and features extensive powder-coating and bolt-on structural assembly.
Contact Us Now
Specification

Model

SJW1.0-16.0

Cabin Dimensions

L1600 × W1650 × H2300 mm

Loading Capacity

1,000 kg

Travel Height

16,000 mm

Number of Levels

5 stops

Load/Unload Patterns

“C” pattern

Lifting Speed

Up to 60 m/min (Adjustable / VFD controlled)

Conveying Speed

20 m/min (Adjustable)

Main Drive & Conveyor Motor

SEW Reducer Motors (Main Drive: 15kW)

Note: The above parameters are for reference only, all products can be customized

Features
  • Strict Lithium Industry Compliance: Designed with absolute contamination control. Zero Lead (Pb), Zinc (Zn), and Copper (Cu) exposure. All iron and steel surfaces are fully powder-coated to prevent metal shedding, utilizing 304 Stainless Steel for core contact components.
  • High-Speed & Precision Positioning: Operates at an adjustable lifting speed of up to 60m/min. Equipped with premium German Schmersal leveling sensors to ensure millimeter-accurate stopping at all 5 stations.
  • Seamless AGV & Automation Integration: Advanced PLC control system pre-configured with docking interfaces to communicate flawlessly with factory AGVs and automated guided vehicles.
  • Modular & Low-Maintenance Design: Built largely with bolt connections rather than welding to facilitate fast indoor installation and clean maintenance.

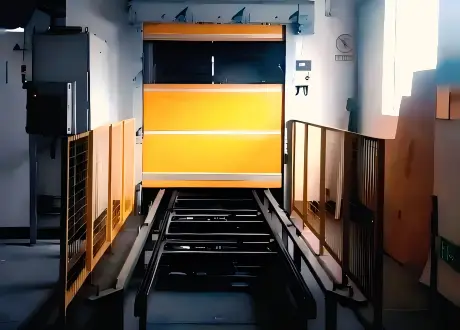

  • Robust Safety Suite: Fully integrated with an elevator-grade safety gear linkage system, overspeed protection, anti-crash terminal switches, and PVC fast rolling shutter gates at each layer.
  •
