Z-type VRC Lift for Transporting Battery Raw Material

This Z-type Vertical Reciprocating Conveyor (VRC) lift is specifically engineered for the lithium battery industry, ideal for vertical transportation of bulk raw materials such as cathode and anode powders, chemical substances, and other heavy-duty loads. It features high load capacity, precise positioning, and a Z-flow layout for efficient, safe, and automated multi-level material handling with minimal manual intervention.

Contact Us Now
Specification
Max. Lifting Capacity3000KG
Carriage Size1500*1500*2100mm
Max. Travel Height12m
Speed6m/min
Power Supply230V/3P, 460V/3P, or 230V/1P

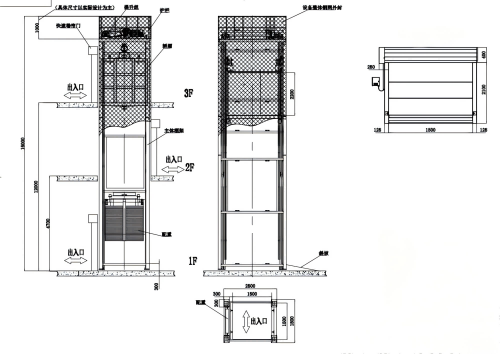

Load/Unload Patterns“Z” pattern
Number of Levels3 Stops
Note: The above parameters are for reference only, all products can be customized
Features

  1. Flexible Layout, Pit-Free Installation
    Platform height as low as 300mm with a small ramp at the ground-level entry/exit—no need for a foundation pit, ideal for existing factory environments.

  2. Multi-Level Stop & Precise Positioning
    Supports three-level precise docking, equipped with a high-stability deceleration system to ensure safe and efficient vertical transport.

  3. Strict Material Selection & Industrial-Grade Components

    No exposed parts use copper or zinc; paint is free from copper, iron, or zinc elements

    Standardized color scheme: carbon steel platform in PANTONE 574c, enclosure in PANTONE 1375c, and control cabinet in RAL7035

    Key components from SMC, Schneider, Omron, Mitsubishi, Kunlun Tongtai, and Delta

  4. High Protection Standards for Harsh Environments
    Motors, control cabinets, and roller doors meet IP55 protection level; motors comply with F-class insulation and IE2 energy efficiency, ensuring long-term stability.

  5. Safety Design for Personnel and Materials
    The lift car is surrounded by 1100mm high safety rails, preventing ton bags from tipping or shifting during operation.
