VRC| 4-post E-type Vertical Reciprocating Conveyor

The 4-post E-type vertical reciprocating conveyor is especially suitable for multi-story material transport, particularly in applications requiring same-side loading and unloading. Its same-side loading and unloading design simplifies the process, effectively improving operational efficiency. It is ideal for environments that require vertical transport across multiple floors, such as multi-story warehouses, distribution centers, and production workshops. By providing stable vertical conveyance, the 4-post E-type VRC allows for the fast and safe movement of materials between floors, saving space and maximizing workflow efficiency.

Specification

Model	4-post E-type VRC Lift
Lifting Capacity	Max.5000kg
Lift Speed	Max.60m/min
Lifting Stroke	0-50m
Conveying Cycle	>15s/piece (depending on the stroke)

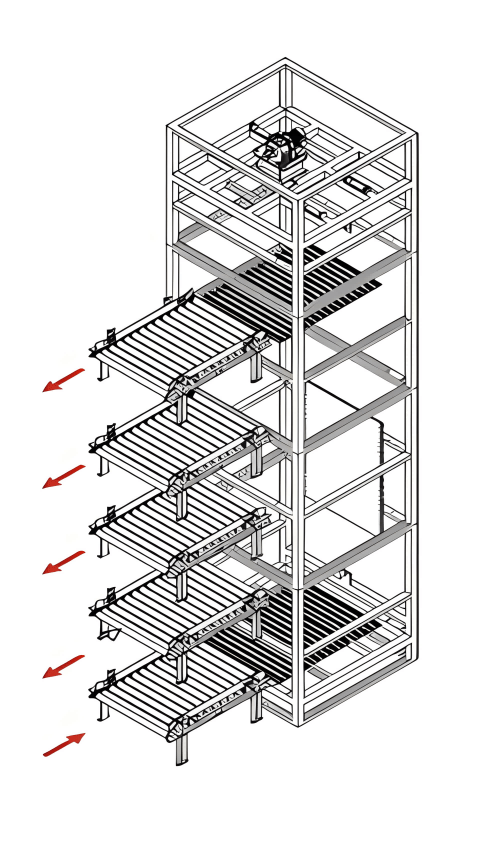

Load/Unload Patterns	“E” pattern
Levels	1 to 6 stops (Customized)
Power Supply	230V/3P or 460V/3P
Application	Moving heavy boxes, cargo, and pallets from one level to another.

Features

Multi-floor Applicability: Suitable for material transport between multiple floors, efficiently and stably moving goods between levels, saving space and improving logistics efficiency.
High Flexibility: Supports multiple loading and unloading modes, allowing for the selection of the appropriate entry and exit method based on operational needs to meet different logistics processes.
High Operational Efficiency: Ideal for complex material handling tasks, improving the efficiency of transitions between different logistics processes.
Safety Assurance: Equipped with multiple safety features, such as limit switches, anti-fall systems, and emergency stop buttons, ensuring the safety of operators and equipment.

3D Design & Customization Service

Our 4-post E-type vertical reciprocating conveyor (VRC) offers customized services to meet various application needs. The platform size, load capacity, and lift height can be tailored according to the specific operational requirements, ensuring optimal compatibility. Additionally, the system supports various conveyor integration options, including roller conveyors, chain conveyors, and plate chain conveyors, providing flexibility for different logistics workflows and enhancing operational efficiency.

Case Solutions

The 4-post E-type vertical reciprocating conveyor is widely used in multi-story warehouses, production workshops, distribution centers, retail and wholesale markets, as well as the food and pharmaceutical industries. It is particularly suitable for environments that require vertical material transport between multiple floors. Its efficient and stable material handling capability not only optimizes space utilization but also significantly improves operational efficiency, meeting the needs of complex logistics processes.
