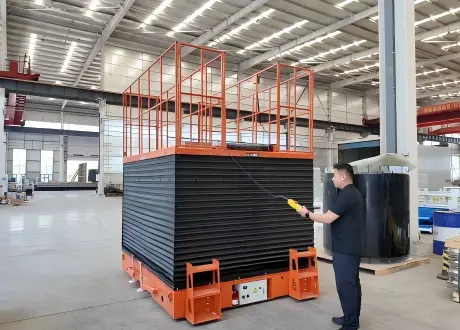

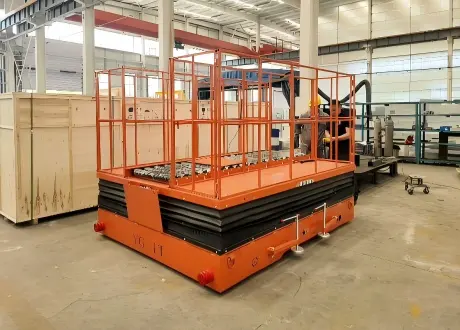

Self-Propelled Electric Scissor Lift Transfer Cart for Military Vehicle Loading

The Self-Propelled Electric Scissor Lift Transfer Cart for Military Vehicle Loading is a customized material handling solution designed for loading, unloading and transferring heavy equipment between the ground and military vehicles or special shelters.

The equipment integrates a self-propelled electric chassis, hydraulic scissor lifting system and powered roller conveyor into one compact platform. It allows operators to accurately position the cart, adjust the platform height and smoothly transfer equipment into or out of the vehicle compartment.

Specification

Model & Type	SJY1.0-2.5 (Self-Propelled Electric Scissor Lift Transfer Cart)
Rated Load Capacity	1000 kg (1 Ton)
Platform Dimensions	2600 mm (L) x 2200 mm (W)
Lifting Height Range	Min Height: 800 mm / Max Height: 2500 mm (Stroke: 1800 mm)
Overall Height with Guardrails	2800 mm (Guardrail Height: 1200 mm, Removable)
Lifting Motor Power & Speed	2.2 kW Hydraulic Station / Max 4 – 6 m/min
Drive Motor & Travel Speed	1.5 kW Motor with brake / Stepless speed adjustable up to ≤8 km/h
Conveyor Motor & Speed	0.75 kW DC Motor / 5 cm/s (Adjustable, Rubber-Coated Rollers)
Power Supply / Battery	48V / 200Ah Lead-Acid Battery (Charger: AC 220V +- 10%)
Wheels & Steering	2 x 300 mm Polyurethane Drive Wheels + 2 x Swivel Casters (Differential Steering)
Bridging Flap Plate	500 mm x 450 mm (For docking with shelter doors)
Control System	Dual Wire Pendants (6m max spring cable), Mode-Interlocked buttons
Application	Military Vehicle Loading and Unloading
Note: The above parameters are for reference only, all products can be customized

Features

3-in-1 Integrated Functional Design: Seamlessly integrates self-propelled mobility, hydraulic scissor elevation, and motorized roller conveying into a single heavy-duty system, significantly streamlining the loading and unloading operations for military equipment.
Ultra-Stable & Safe Hydraulic Lifting: Engineered with a reinforced scissor structure and dual hydraulic cylinders to ensure exceptionally smooth vertical movement. Built-in manual emergency lowering valves and automated overload protection systems provide maximum operational safety during high-lift transfers.
Scratch-Free Powered Roller Conveying: Features a premium rubber-coated motorized roller bed supporting reversible, speed-adjustable conveying. This design facilitates precise cargo positioning while protecting sensitive military cabinets, shelters, and electronics from surface scratches or impact damage.
Intuitive Independent Pendant Control: Equipped with a multi-mode pendant controller that allows operators to seamlessly manage traveling, lifting, and conveyor movement. Dedicated interlocking prevents concurrent mode actuation, eliminating misoperation risks on-site.
Tailor-Made Military Adaptability: Specially designed for defense applications with full-length safety guardrails, heavy-duty folding outriggers, and custom shelter-bridge plates. Platform dimensions, lift heights, payload capabilities, and roller configurations can be customized to match specific military vehicles and shelter cabins.
