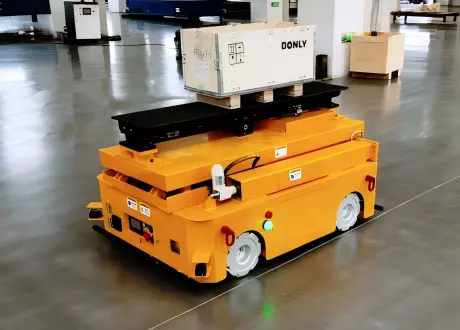

Omnidirectional Mecanum Wheel Transfer Cart with Scissor Lift & Telescopic Deck

This Custom Omnidirectional Mecanum Wheel Transfer Cart is designed to replace traditional forklifts for precise assembly tasks, such as aligning heavy train couplers into vehicle chassis mounting holes.

Combining a zero-radius Mecanum wheel system, a 500kg load capacity, a vertical scissor lift (800–1900 mm), and a longitudinal telescopic extension deck (0–1000 mm), this vehicle delivers multi-axis millimeter-level positioning. Controlled via a dedicated anti-interference wireless remote and powered by a long-lasting LiFePO4 battery, it smoothly crosses 70mm ground rails and operates safely in tight, high-intensity industrial workshops.

Specification

Model	Omnidirectional Transfer Cart
Overall Dimensions (L * W * H)	1500* 1000*800 mm
Loading Capacity	500KG
Platform Deck Dimensions	1500 * 1400 mm
Lowered Height	800mm
Vertical Lifting Height	800 mm -1900 mm
Telescopic Deck Extension	0–1000 mm (Width: 500 mm)
Wheel System	Mecanum Wheels with Integrated Brakes
Control Method	Remote control
Battery Type	High-Safety LiFePO4
Continuous Operating Time	≥ 8 Hours (Full Charge)
Note: The above parameters are for reference only, all products can be customized

Features

360° Omnidirectional Mobility & Zero-Turning Radius: Utilizes vector-driven Mecanum wheels to achieve complete freedom of movement in tight workshop spaces. Operators can maneuver the cart sideways (crab walk), diagonally, forward, backward, and perform 360-degree zero-radius rotations on the spot, eliminating the maneuverability limitations of traditional steerable vehicles.

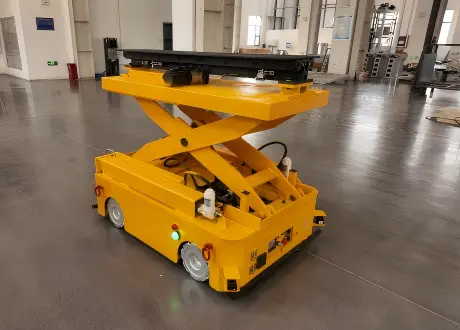

Multi-Axis High-Precision Positioning (Lift + Telescopic Deck): Features a heavy-duty vertical lift mechanism with an 800 mm to 1900 mm stroke, combined with a 500 mm wide top platform that extends horizontally from 0 to 1000 mm. This dual-axis movement enables accurate alignment of heavy components (such as rail couplers) directly with fixed mounting holes without manual strain or forklift assistance.
Enhanced Anti-Slip & Rail-Crossing Wheel Engineering: Specially engineered with high-friction, highly wear-resistant wheel materials and integrated electromagnetic braking systems. Designed to effortlessly cross ground rails (up to ~70 mm wide) without slipping, wheel locking, or losing traction, even on wet or smooth epoxy workshop floors.
Dedicated Industrial Anti-Interference Wireless Control: Operates via a handheld remote control equipped with its own dedicated wireless communication protocol. This isolated frequency prevents signal overlap and radio interference from other wireless equipment operating within the factory. Intuitive controls cover travel direction, outrigger extension/retraction, vertical lifting, and deck extension.
Long-Life LiFePO4 Battery with High-Duty Cycle: Powered by an industrial-grade Lithium Iron Phosphate (LiFePO4) battery pack. Fully charged, it guarantees ≥ 8 hours of continuous, full-duty operation, providing reliable power across complete factory shifts with rapid charging capability and thermal safety.
