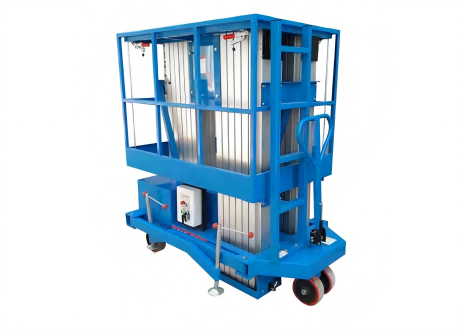

Tri-Mast Vertical Man Lift

The Tri-Mast Vertical Man Lift is designed with three synchronized aluminum alloy masts, ensuring excellent stability and higher load capacity. Its foldable guardrail design reduces overall height for easy transportation, and assembly or disassembly can be done quickly and conveniently. With a maximum load of 200 kg and a working height of up to 16 meters, it allows two operators to work simultaneously with tools and materials. This lift is ideal for wall maintenance, painting, decoration, lighting replacement, and appliance cleaning in both indoor and outdoor environments.

Spécifications
ModèleGTWY10-320GTWY12-320GTWY14-320GTWY16-320
[A]Max.Working height(m)12141618
[B]Max.Platform height(m)10121416
Lift capacity(kg)200
[H*I]Platform dimensions(mm)1570*900
[C*D*E]Overall dimensions(mm)2000*1250*20002100*1250*20002100*1250*23502100*1250*2650
Platform occupancy2
Drive electric motor(kw)220V/2.2kw
Lifting speed(m/min)3-5
Weight(kg)9001000

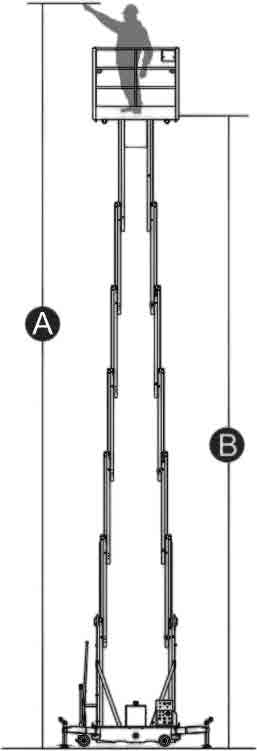

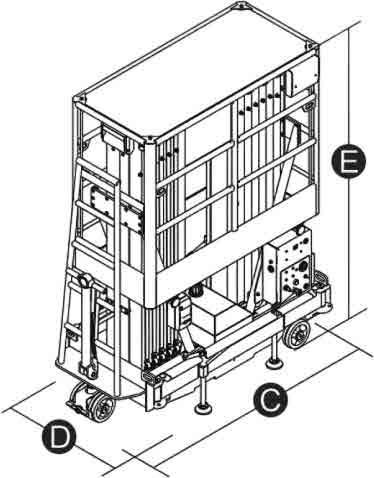

Schéma
Caractéristiques

Pneus solides

Leveling Device

Control Panel

One-touch Emergency Stop Button

Insert Type Outrigger Legs

Emergency Descent Button
