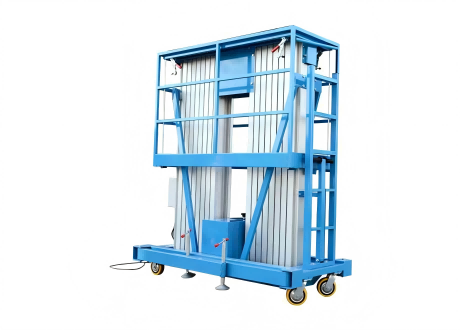

The Double Mast Vertical Man Lift is made of high-strength aluminum alloy, offering excellent stability and durability. It features manual movement, vehicle transport, and electric lifting functions. Compared with the single mast type, it provides a larger platform, higher load capacity, and enhanced stability. With a maximum working height of up to 16 meters, it is ideal for indoor and outdoor applications such as warehouses, hotels, airports, and facility maintenance.
Spécifications
| Modèle | GTWY06-2 | GTWY08-2 | GTWY10-2 | GTWY12-2 | GTWY14-2 |
| [A]Max.Working height(m) | 8 | 10 | 12 | 14 | 16 |
| [B]Max.Platform height(m) | 6 | 8 | 10 | 12 | 14 |
| Lift capacity(kg) | 300 | 250 | 200 | 150 | |
| [H*I]Platform dimensions(mm) | 1200*630*1100 | 1500*630*1100 | |||
| [C*D*E]Overall dimensions(mm) | 1553*850*2000 | 1848*850*2000 | 1950*1050*2390 | ||
| [G*F]Outrigger unfolded dimensions(mm) | 1694*1814 | 1954*2259 | 2240*2410 | ||
| Platform occupancy | 2 | 1 | |||
| Ground clearance(center)(m) | 0.06 | 0.06 | |||
| [D]Wheelbase(m) | 1.23 | 1.44 | 1.54 | ||
| Drive electric motor(kw) | 220V/1.5kw | 220V/2.2kw | |||
| Lifting speed(m/min) | 3-5 | ||||
| Weight(kg) | 510 | 550 | 690 | 730 | 790 |
Schéma
Caractéristiques
Pneus solides
Leveling Device
Control Panel
One-touch Emergency Stop Button
Insert Type Outrigger Legs
Emergency Descent Button
