VRC| Transportador reciprocante vertical de alta velocidad

The High Speed Vertical Reciprocating Conveyor is an efficient and reliable vertical material handling solution. It uses a continuous timing belt drive system for smooth, fast, and maintenance-free operation. Capable of handling up to 100 kg of boxes, pallets, and other loads, it reaches lifting speeds of up to 2 meters per second with a throughput of approximately 400 cycles per hour. Its compact footprint and modular design allow for easy integration and customization, making it ideal for industries such as logistics, e-commerce, manufacturing, food, and pharmaceuticals.

Especificación

Standard Parameters

Lowest infeed/outfeed position

350mm

Highest infeed/outfeed position

17,610mm

Max. Travel height

18m

Max. Product weight

100kg

Max. Product size

910 x 610mm

Max. Throughput

400 p/hour

Características

• Small footprint

• No lubrication or chain tensioning required

• Suitable for vertical sorting on multiple levels

• Solid and robust steel construction

• Cross transfer arrangement also possible

• Maximum vetical speed up to 2 m/s • Boxes, totes, bags, etc. up to 100 kg.

• Accurate positioning of the carrier due to a • Little maintenance required gear motor with encoder and timing belt system

• Low noise leve

Servicio de diseño y personalización en 3D

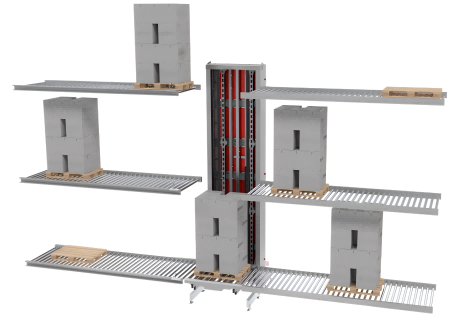

The High Speed Vertical Reciprocating Conveyor can be effortlessly integrated into almost any situation. The vertical conveyor can not only fed in or discharge products from the left and/or right side, but – if a suitable product conveyor is mounted – also from the front.
